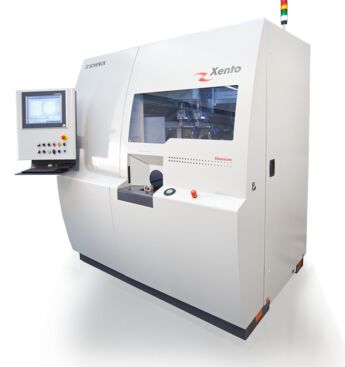

Balancing Machines for Turbocharger Core Assemblies Xento - Schenck South Africa
Automatic balancing measurement and correction
Measurement over the full speed range
Automatic correction in two planes
Integrated pulsation measurement
Vibration analysis for quality test
Sequence of operations
Manually or automatic loading
DMC scanning
Magnetization of shaft for speed and angle detection
Transfer into the measurement station with a double gripper system
Transfer to the correction station, two plane correction by milling
Audit measurement
Parallel work on up to 3 parts
State-of-the-art welding technology
Design
Range of application

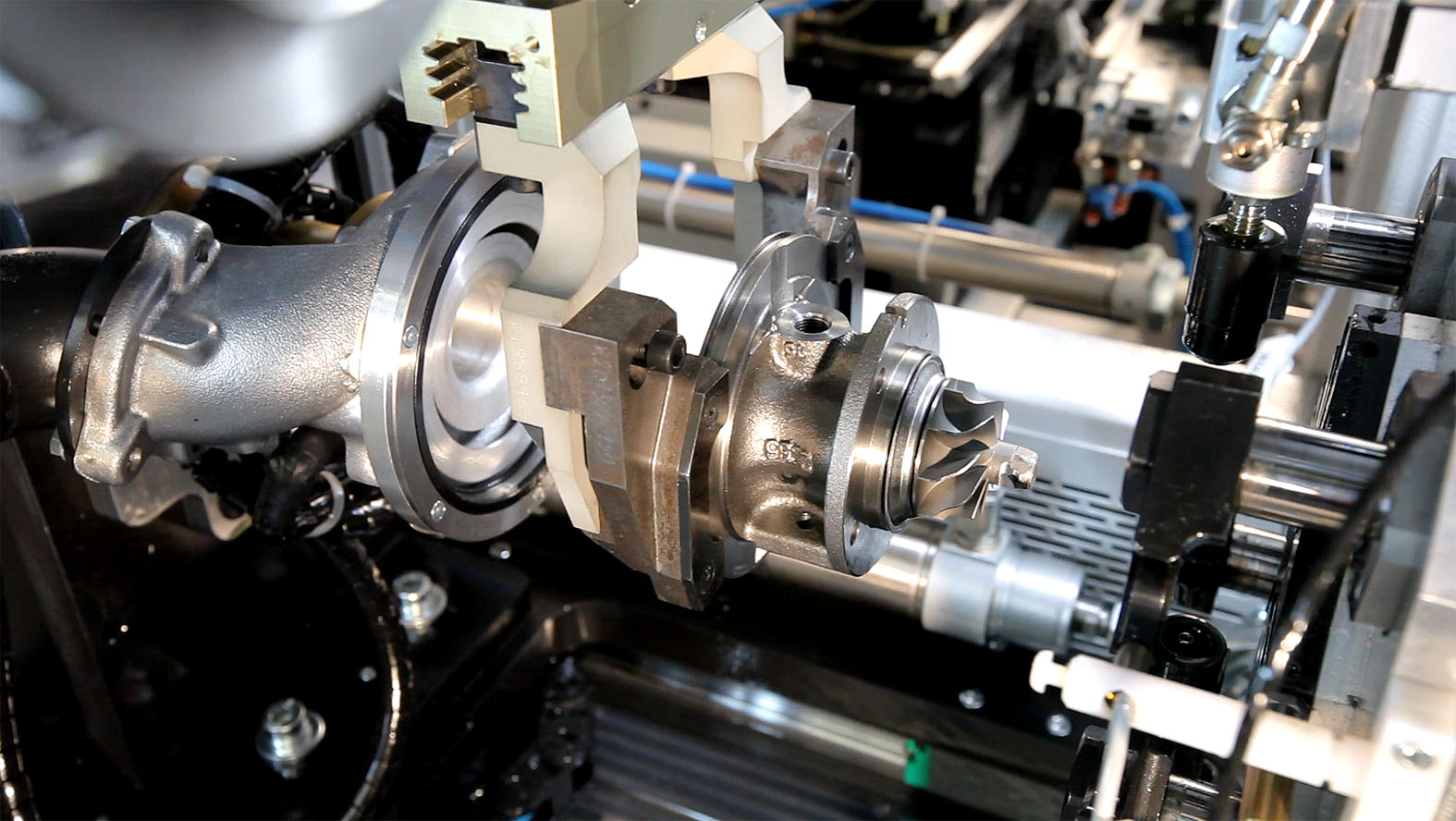

Measurement of vibration and pulsation on Turbocharger Core Assemblies
Speed control and data acquisition over the complete speed range
Calculation of two plane unbalance for vibration reduction over the full speed range

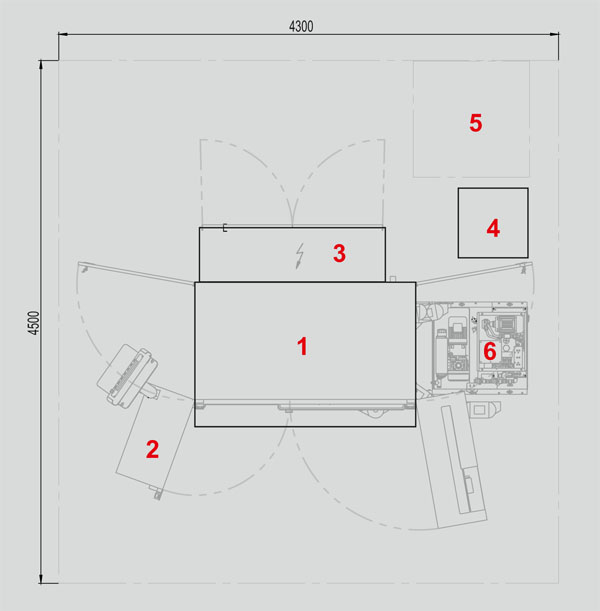

Design

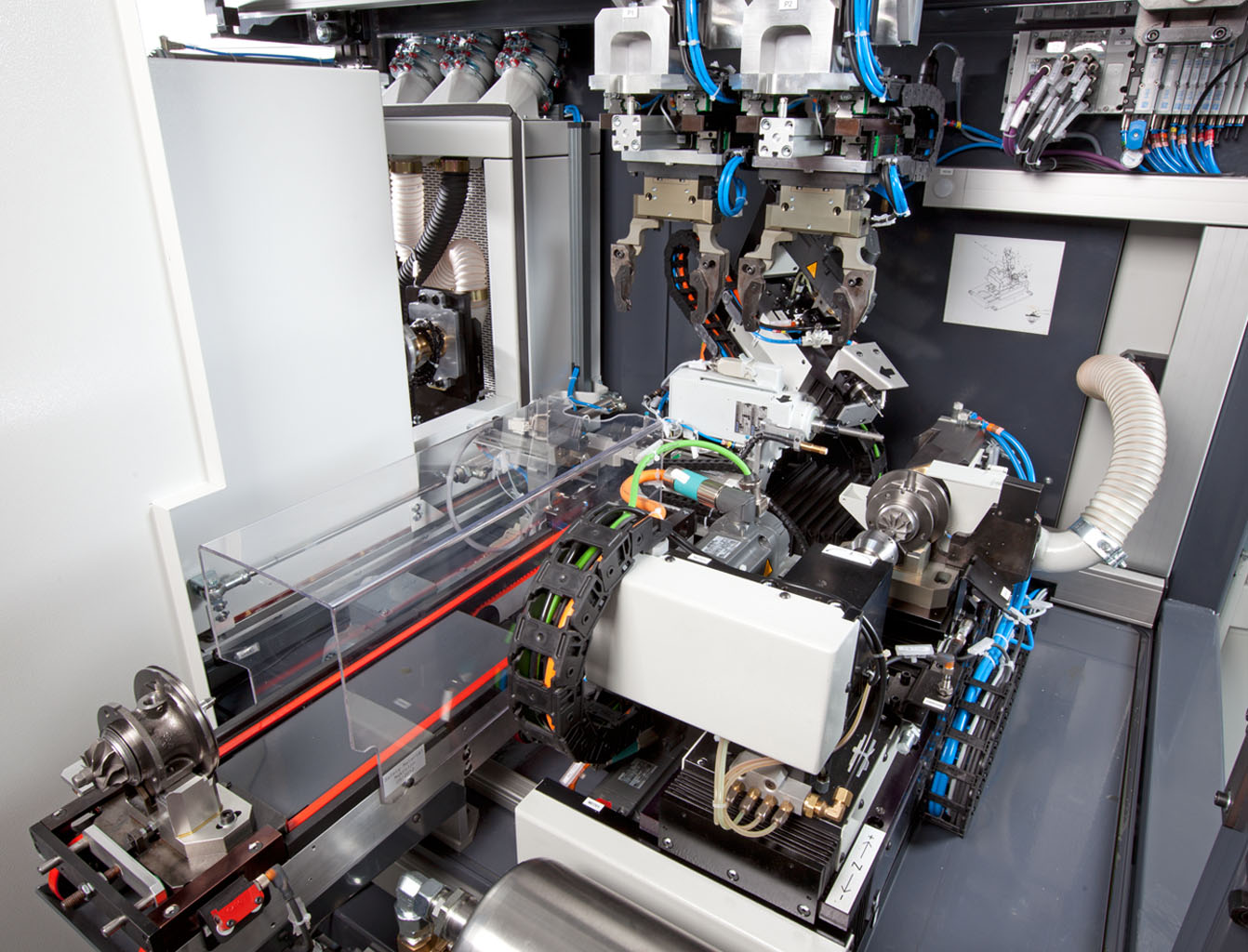

Measuring and correction station in one small machine
Separate stations for measurement and correction

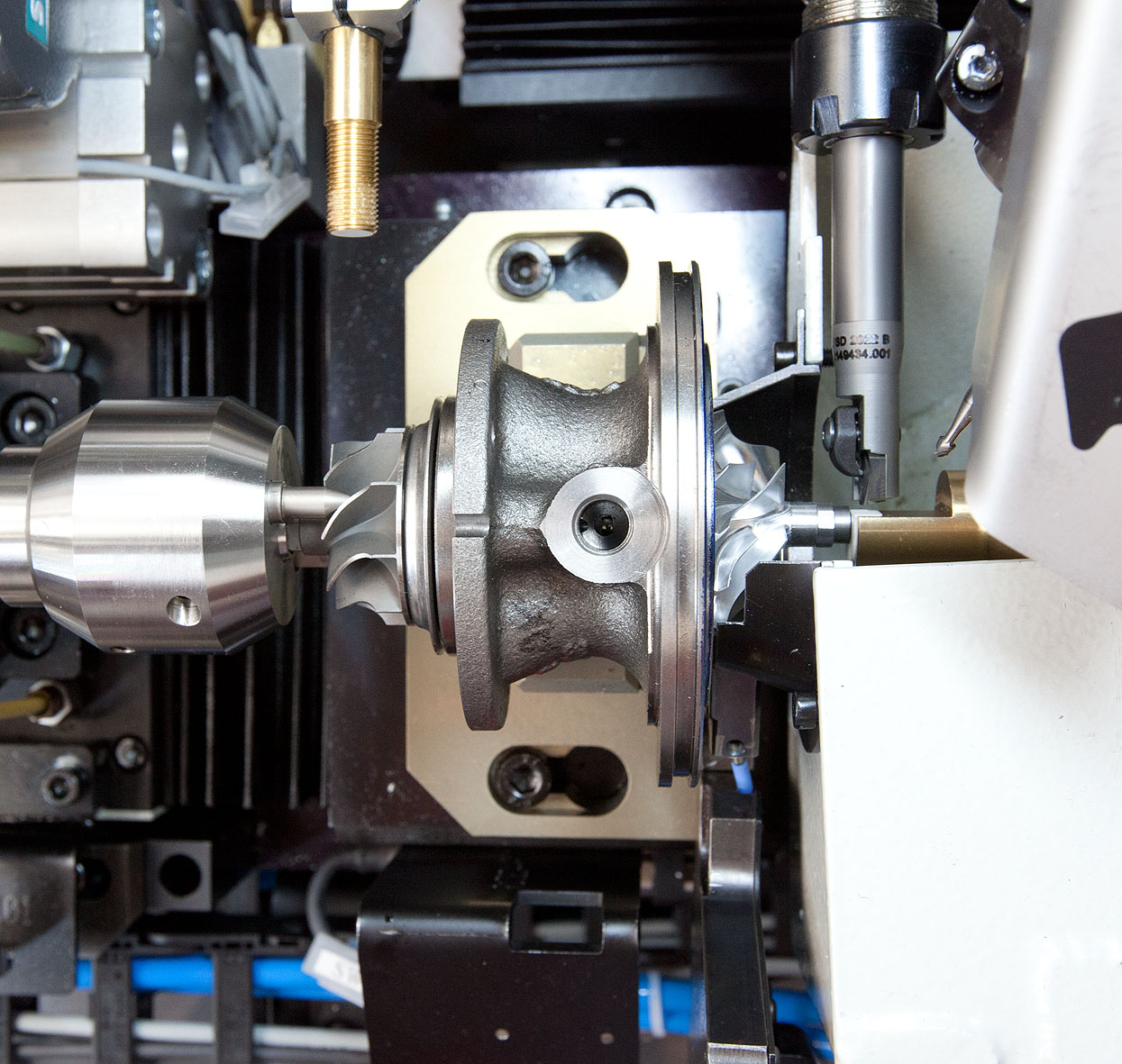

Correction at two planes with separate milling spindles
Integrated shaft magnetization
Oil lubrication system with parameter control
Technical data
Technical data at a glance
Xento
Measuring unit
CAB 950
Automatic unbalance measurement
•
Automatic unbalance correction
•
Complete core assemblies
•
Weight
[kg]
4
Diameter
[mm]
140
Lenght
[mm]
140
Machine
Balancing speed, max.
[min -1]
300.000
Measurement uncertainty 1)
[mgmm]
1...10
Cycle time 2)
[s]
90
Options
Pulsation measurement
DMC scanning
1) Acc. To DIN 1319, 95% probability, work-piece dependent
2) Dependent on initial unbalance
